V2/Digital Twin Tutorial/Viewing Site/Site BBL
From Senfi Docs
Contents
Show Individual Building, Block & Level
Note: The following steps assume that the user is already logged in to the Digital Twin and selected a site.
Steps
1. Select "SITE" tab.

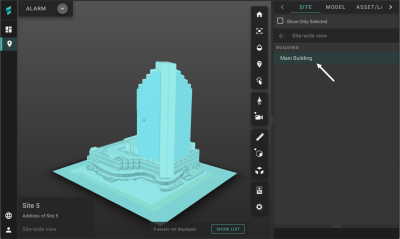

2. Select the building you want to show.

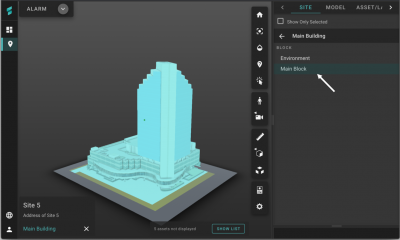

3. Select the block you want to show.

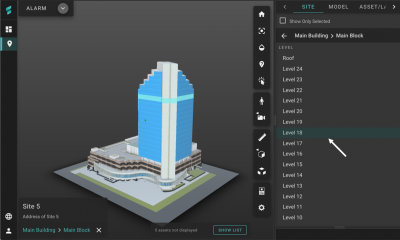

4. Select the level you want to show.
Output: Level 18 of the Main Block of the Main Building is shown.
Tip: You can select the Building, Block & Level in the BBL Displayed Box to display it.
Unselect BBL
There are two ways to unselect BBL:
- Select the Building, Block & Level in the BBL Displayed Box to unselect its nested level.
- E.g. Selecting the Block will unselect the Level.
- Select
Back beside the BBL you want to unselect.
Show Only Selected
Checking the "Show Only Selected" box will hide all other Buildings and Blocks that were not selected.
